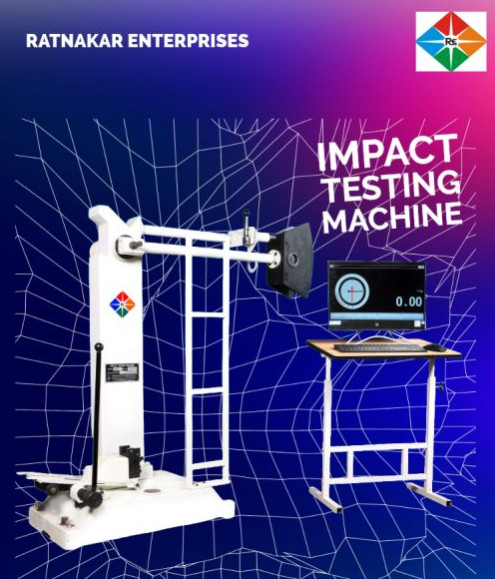

Impact Testing Machine
Leading Manufacturers, Exporters, Wholesaler and Retailer of Charpy Impact Testing Machine, Digital Impact Testing Machine RI 300 E and Pendulum Impact Testing Machine from Kolhapur.
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Ratnakar |
| Minimum Order Quantity | 1 Unit |
| Product Type | Impact Testing Machine |
| Model Name/Number | RI 300 ASTM |
| Automation Grade | Automatic |
| Capacity | 14 Jouls to 750 Joules |
| Material | Metal |
| Usage | Industrial |
Preferred Buyer From
| Location | Worldwide |
Owing to the knowledge of this domain, we are offering to our patrons a broad spectrum of Charpy Impact Testing Machine.
Features:
Caliper gauge for checking V notch both for izod & Charpy as per BS: 131: Part, 1, 2 & 3
Template for checking 10x10 mm cross section of izod / Charpy test specimen
Depth notch gauge including V & U notch gauges for checking depth below V/U notch, angle and radius
Izod support for 0.450 dia Izod round specimen
Self-centering tong for quick and accurate setting of Charpy test specimen
V notch milling cutter 22 mm bore
U notch milling cutter 22 mm bore
Additional Information:
- Item Code: RI-30-ASTM
- Production Capacity: 100 PA
- Delivery Time: 9
- Packaging Details: WOODEN PACK
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Ratnakar |
| Product Type | Impact Testing Machine |
| Model Name/Number | RI 300 E |
| Automation Grade | Automatic |
| Feature | Highly Durable |
| Usage | Industrial |
Preferred Buyer From
| Location | Worldwide |
Since the inception of our firm, we are offering a quality assured array of Digital Impact Testing Machine.
Description:
Electronic digital display
Simple construction of pendulum izod so that izod or charpy machine, machine can build at sight
Interchangeable stickers for izod & charpy positions
Positive pendulum lock in izod & charpy positions
Safety guard for protection
A braking arrangement for stopping the pendulum
Optional printer interface
Technical Specification And Features:
Suitable for Charpy & Izod Impact tests on various materials. Works on Pendulum principle.
Rigid designs of machine frame & other parts assure minimum energy absorption during fracture which results in improved test accuracies.
The highly stressed & wearing parts like support blocks & strikers are of special alloy steels duly heat treated.
Safety guard for the operator is provided.
Initial potential energy for Charpy is 300 Joules & for Izod is 170 Joules with a resolution of 0.5 Joules
Pendulum drop angle for Charpy is 140° & for Izod is 90°.
Optional Accessories:
Caliper gauge for checking V notch for Izod & Charpy.
Templates for checking 10 x 10 mm cross section of Izod / Charpy test specimen.
Depth notch gauge including V & U notch gauges for checking depth below V/U notch, angle and radius.
Izod support for 0.450" dia Izod round specimen.
Self centering tong for quick and accurate setting of Charpy test specimen.
''V'' notch milling cutter.
Additional Information:
- Item Code: RI-300E
| Business Type | Supplier, Retailer, Wholesaler |
| Brand Name | Ratnakar,Ratnakar |
| Model Name/Number | RI 300 |
| Automation Grade | Manual |
| Material | Metal |
| Usage | Industrial |
Preferred Buyer From
| Location | Worldwide |
We are a trusted organization of this domain in offering a wide gamut of Pendulum Impact Testing Machine to our valued customers. This machine has the large rectangular dial with outer scale for Charpy test and inner scale for Izod. Also, in this, the pendulum is supported separately in two positions by a common latching tune like the upper position for Charpy test and the lower for the Izod test.
