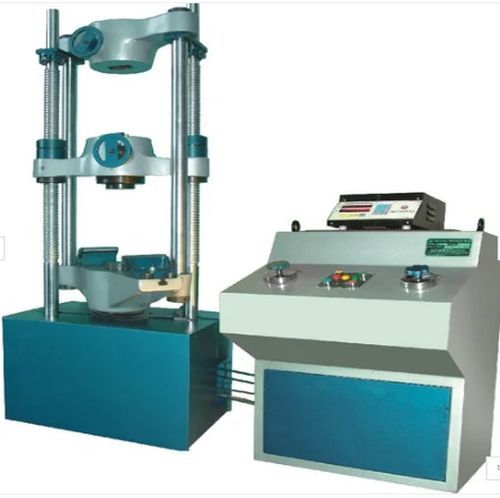

Universal Testing Machine

We are the leading name in the market engaged in offering a wide assortment of Analog Cum Computerized Universal Testing Machine.
Specializations:

• Computer controlled electromechanical drive
• Wide range of Tensile Speeds
• Personal Computer for enhanced performance and flexibility
• User defined programs and high level data processing programs
• Graphic Display, printer/plotter for high accuracy and rapid response
• Variety of Tests -Tensile, Compression, Bending, Shearing, Cohesion/ Ex foliation, Relaxation, Low cycle fatigue, Stress/Strain controlled tests etc.
• Loading accuracy well within + 1%

Features :

• Loading accuracy as high as ± 1%.
• Suitable at variable speeds to suit a wide range of materials.
• Continuous roll autographic recorder supplied as standard to enable study of the behavior of materials.
• Motor driven threaded columns for quick effortless adjustment of lower cross-head-to facilitate rapid fixing of test specimen.
• High reading accuracy due to large size and design of dial.

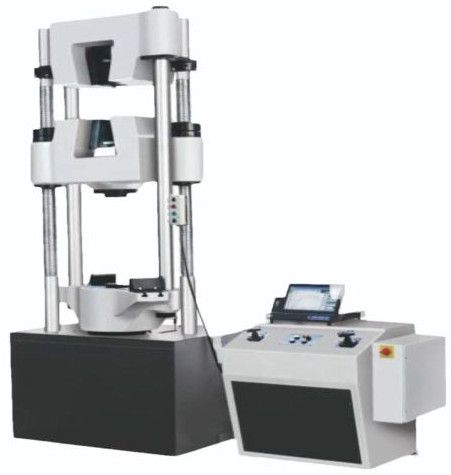

• Wide range of standard and special accessories, including Servo control mode, Hydraulic grip front loading, Touch screen control panel & load stabilizer.
• Easy change from plain to threaded and screwed specimens.
• Large effective clearance between columns enables testing of standards specimens as well as structures.
• Simple controls for ease of operation.
• Robust straining frame of an extremely rigid construction.
• Safe operation ensured by means of safety devices.
• Fully enclosed and protected pendulum.
• Directional control valve provided to change the testing for analogue to digital mode.
• RS 232 serial port to transfer data to computer for analysis/storage evaluation etc
• Printer & PC graphs enable study the behavior of the material.
• Simplicity in reading because of digital readouts.
• Load Capacity : 100 kN, 200 kN, 400 kN, 600 kN, 1000 kN.

We are offering a superior range of Computerized Universal Testing Machine to our valued clients. Owing to its high strength feature, it is widely acknowledged in the market.

Features
Low maintenance Simple designUser friendlyHighly demanded Light weight Long life
Product Details
Loading accuracy as high as + 1%Straining at variable speeds to suit a wide range of materialsPrinter & PC graphs enable study the behavior of the materialsMotor driven threaded columns for quick effortless adjustment of middle cross head to facilitate rapid fixing of test specimenContinuous roll autographic recorder supplied as standard to enable study of the behavior of materialsSimplicity in reading because of digital readoutsWide range of standard and special accessories, including load stabilizerEasy change from plain to threaded and screwed specimensLarge effective clearance between columns enables testing of standard specimens as well as structuresSimple controls for easy of operationRobust straining frame of an extremely rigid constructionSafe operation ensured be means of safety devicesFully enclosed and protected pressure transducer RS 232 serial port to transfer data to computer for analysis/storage evaluation etc. Manual control & release valve operation

We are a renowned and customer centric firm, which is engaged in delivering a comprehensive range of Electronic Universal Testing Machine. It is equipped with electronic digital display for load and elongation.

Technical Specifications:
1st Measuring Range : 0-80 KN
Load Resolution : 0.02 KN
2nd Measuring Range : 0-160 KN
Load Resolution: 0.04 KN
3rd Measuring Range: 0-400 KN
Load Resolution: 0.1 KN
Resolution of Piston Movement (Displacement): 0.1 mm
Clearance for tesile at fully descended working piston : 50-700 mm
Clearance for compression test at fully descended working piston : 0-800 mm
Clearance between columns: 500 mm
Straining / Piston speeds (at no load): 0-150 mm
CONNECTED LOAD
HP @ (Voltage: 440 V, Phase: 3, Hz : 50 ) : 2.3

Standard Accessories:
For tension test:
Clamping for round: 10-25 mm
Specimens diameters : 25-40 mm
Clamping jaws for flat: 0-15 mm
specimens thickness: 15-30 mm
Width : 65 mm

For compression test:
Pair of compression plates of diameter: 120 mm

For transverse test:
Table with adjustable rollers width of rollers: 160 mm
Diameter of Rollers: 30
Maximum clearance between Supports: 500 mm
Radius of Punch tops: 12,16 mm

Variety of tests like Tension,Compression,Tranverse, etc. are conducted.
“Load Vs Elongation” recorder.
Suitable for testing a wide range of metallic materials.
Extra (Optional) Accessories such as – Mechanical Extensometer, Load-Stabilizer, Attachments for Brinell test, Tensile test for shouldered & threaded, Single & Double shear test, Bolts-Nuts & Washer test, Rope test, Flat Belt test, Bend-Rebend test, 180° Bend test, Pull-Out test, etc. are available.
Capacities from 100 kN to 2000 kN.

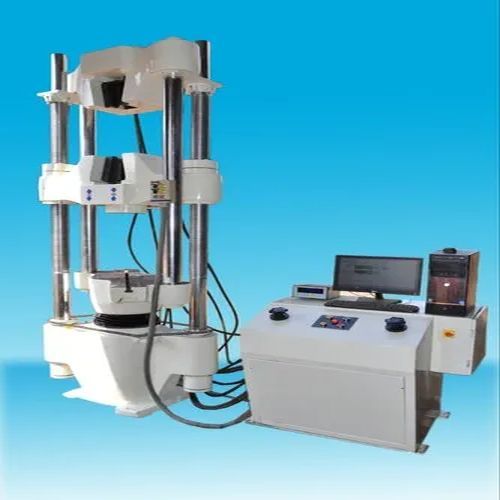

We are a leading Manufacturer of front open cross head universal testing machine, computerized universal testing machine, universal testing machine kut, electronic universal testing machine, analog cum computerized universal testing machine and servo controlled universal testing machine from Ichalakaranji, India.

Since its inception in 1999, Ratnakar Enterprises, the pioneering manufacturer, exporter, trader, wholesaler and retailer firm is performing a commanding role in the industry by producing next generation Testing Machines. We are developing a modern day product portfolio, which comprises highly necessitated equipment such as Universal Testing Machine, Impact Testing Machine and Compression Testing Machine. With the focus on quality, our products are produced to deliver beneficial characteristics of high tensile strength, efficient performance, robust construction, durable finish standards, and low maintenance costs. Moreover, we offer superior grade repairing and calibration services that stands for authenticity and cost-effectiveness while assuring long-term performance. We export our products to Asian, African and Gulf Countries.

Features

• Open type cross head
• Hydraulic wedge action grips
• Long test stroke and dual test space
• Loading accuracy as high as ± 1%
• Straining at variable speeds to suit a wide range of materials.
• Printer & PC graphs enable study the behavior of the material.
• Motor driven threaded columns for quick effortless adjustment of lower cross-head-to facilitate rapid fixing of test specimen.
• Simplicity in reading because of digital readouts.
• Wide range of standard and special accessories, including load stabilizer.
• Easy change from plain to threaded and screwed specimens.
• Large effective clearance between columns enables testing of standards specimens as well as structures.
• Simple controls for ease of operation.
• Robust straining frame of an extremely rigid construction.
• Safe operation ensured by means of safety devices.
• Fully enclosed and protected pressure transducer.
• RS 232 serial port to transfer data to computer for analysis/storage evaluation etc.
• Manual control & release valve operation.
• Load Capacity : 100 kN, 200 kN, 400 kN, 600 kN, 1000 kN and 1200 kN.

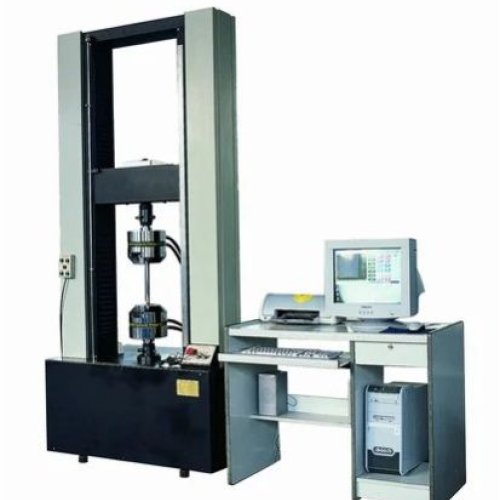

We are providing a qualitative range of Universal Testing Machine. Equipped with many qualities, this machine is serving various industries. Servo controlled electronic universal testing machine can be attained at market leading prices.

Technical Features:

Loading accuracy as high as + 1%

Straining at variable speeds to suit a wide range of materials.

Motor driven threaded columns for quick effort.

Less adjustment of middle cross-head-to facilitate rapid fixing of test specimen.

Simplicity in reading because of digital readouts.

Wide range of standard and special accessories, including load stabilizer.

Easy change from plain to threaded and screwed specimens.

Large effective clearance between columns enables testing of standard specimens as well as structures.

Simple controls for ease of operation.

Robust straining frame of an extremely rigid construction.

Safe operation ensured by means of safety devices.

Fully enclosed and protected pressure transducer.

Optional serial port to transfer data to computer for analysis / storage evaluation etc.

Technical Specifications:

1st Measuring Range : 0-120 KN

Load Resolution : 0.03 KN

2nd Measuring Range : 0-160 KN

Load Resolution: 0.06 KN

3rd Measuring Range: 0-600 KN

Load Resolution: 0.15 KN

Resolution of Piston Movement (Displacement): 0.1 mm

Clearance for tesile at fully descended working piston : 50-700 mm

Clearance for compression test at fully descended working piston : 0-800 mm

Clearance between columns: 600 mm

Ram Stroke: 600 mm

Straining / Piston speeds (at no load): 0-100 mm

CONNECTED LOAD

HP @ (Voltage: 440 V, Phase: 3, Hz : 50 ) : 2.5

Standard Accessories:

For tension test:

Clamping for round: 10-25 mm

Specimens diameters : 25-40 mm, 40-55 mm

Clamping jaws for flat: 0-15 mm

specimens thickness : 15-30 mm

Width : 70 mm

For compression test:

Pair of compression plates of diameter: 120 mm

For transverse test:

Table with adjustable rollers width of rollers: 160 mm

Diameter of Rollers: 50

Maximum clearance between Supports: 600 mm

Radius of Punch tops: 16 , 22 mm

Software features:
Windows based software with real time XY graphics display and software for data management.

With advanced features:

Real time graph on PC.

Superimpose graph system.

Zooming of graph.

Stress Vs. strain graph.

Stress Vs. Displacement Graph.

Point Tracing on graph.

Along with Computer , UPS, Printer & Hydraulic Oil

We are offering a wide range of Computer Controlled Universal Testing Machine to our respected clients.
Description:
Straining rate to cover a wide range of materials
Continuous roll type load elongation recorder
High reading accuracy due to large size and design of dial
Simple controls to facilitate ease of operation
Fully enclosed and protected load measuring system
Wide range of standard and special accessories including load stabilizer
Robust straining frame Suitable for standard specimen and also structures
Motorized UP/DOWN movement of lower cross-head to enable easy and rapid fixing of test specimen.
