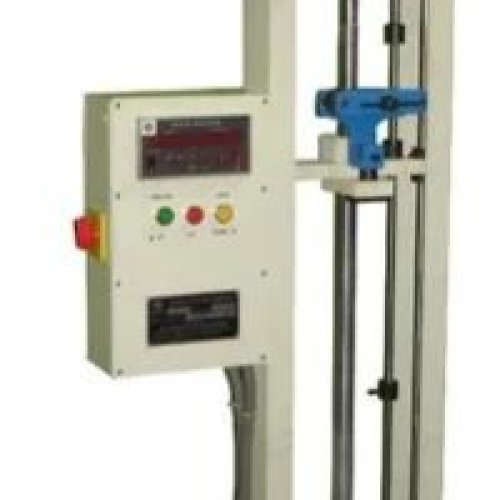

Computerized Tensile Testing Machine

Link Copied

3.98 Lac / piece

Edit

Business Type	Manufacturer, Exporter, Supplier
Brand	RATNAKAR
Material	Mild Steel
Capacity	up to 200kn/ 20 ton
Click to view more

Product Details

Country of Origin

230V AC/ 440V AC

Usage/Application

Industrial

Display Type

Large Color Graphic Display

Operating Mode

Automatic

Frequency

50 HZ

Accuracy

High

Number of Load Cells

Up to 5 Load Cells

Features :

Precision AC servo motor & drive with ball lead screw gives an advanced drive system with 1 to 500 standard speed range.
Provision for load cell interchangeability & thereby automatic selection of load full scale & Units (kN or N).
Speed selection through data entry or variable speed through potentiometer.
Facility for mounting different load cells & clamping devices to suit different tests & materials such as thin wires, metal sheets, fiber glass, leathers, springs, card boards etc.
Built-in parallel interface to connect Dot matrix printer for data & curve print-out.
Safety interlock for overload & limit switch sensing to ensure protection during test.
Universal applications in R& D, Education, Quality control & Production for test like, Tensile, Compression, Bending etc.
