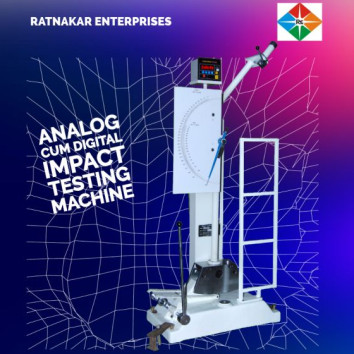

Digital Impact Testing Machine RI 300 E

Since the inception of our firm, we are offering a quality assured array of Digital Impact Testing Machine.

Description:

Electronic digital display

Simple construction of pendulum izod so that izod or charpy machine, machine can build at sight

Interchangeable stickers for izod & charpy positions

Positive pendulum lock in izod & charpy positions

Safety guard for protection

A braking arrangement for stopping the pendulum

Optional printer interface


Technical Specification And Features:

Suitable for Charpy & Izod Impact tests on various materials. Works on Pendulum principle.

Rigid designs of machine frame & other parts assure minimum energy absorption during fracture which results in improved test accuracies.

The highly stressed & wearing parts like support blocks & strikers are of special alloy steels duly heat treated.

Safety guard for the operator is provided.

Initial potential energy for Charpy is 300 Joules & for Izod is 170 Joules with a resolution of 0.5 Joules

Pendulum drop angle for Charpy is 140° & for Izod is 90°.

Optional Accessories:

Caliper gauge for checking V notch for Izod & Charpy.

Templates for checking 10 x 10 mm cross section of Izod / Charpy test specimen.

Depth notch gauge including V & U notch gauges for checking depth below V/U notch, angle and radius.

Izod support for 0.450" dia Izod round specimen.

Self centering tong for quick and accurate setting of Charpy test specimen.

''V'' notch milling cutter.

Additional Information:

• Item Code: RI-300E
